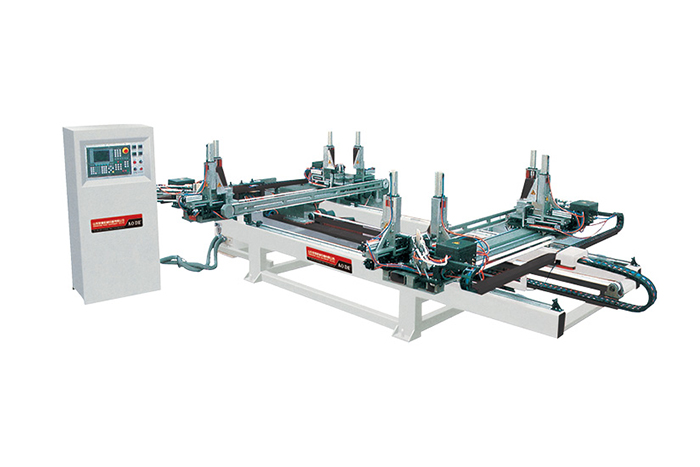

塑料门窗卧式数控四角焊接机SHP4W-CNC-3000
·一次装夹可实现矩形框扇制品的焊接成形;
· 整套进口数控系统控制,焊接制品精度高、操作方便、可靠性高、自动化程度高;
· 独有的技术诀窍确保焊接成型尺寸及焊接角强度,且使焊接角 强度稳定;
· 可实现尺寸误差补偿,可进一步使焊接制品尺寸精度提高;专 用自动出料机构,实现自动出料;
· 机身卧式布置,焊接平稳可靠、成型尺寸精度高。
·One fame, one working cycle.
·Specil profie foture iseasytochange; forhigh camer strength and good deaning effect imponed inesr beaning sytemkepthe runing stable.
·Special technique keep the high corner strength Horizontal+ Multi-ayer+ Parallel Welding.
·Machine body is aranged in horizontal features stable and precdise welded.
· Special profle auto discharge device
设备参数 | ||
输入电源 | Power supply | 380N 50Hz |
总功率 | Total power | 70kw |
工作气压 | Operation air pressure | 0.5~0.8MPa |
焊接型材高度 | welding profile height | 25~120mm |
焊接型材宽度 | welding profile width | 0~120mm |
焊接成窗范围 | Welding range | 500×650mm~1800x3000mm |
外形尺寸(长x宽x高) | Contour dimension (LxWxH) | 5100×3050x1500mm |
