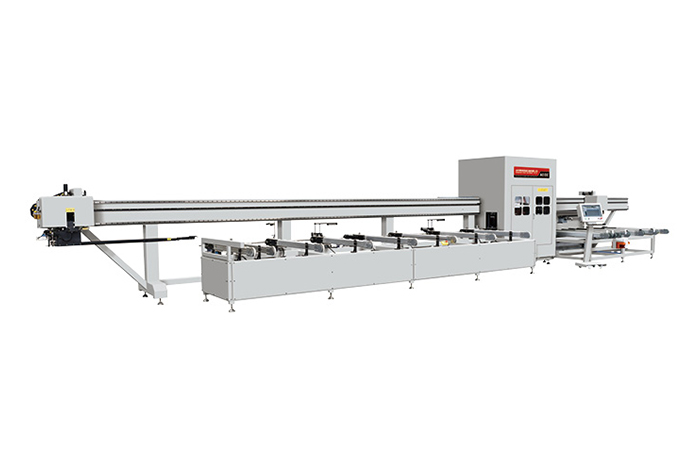

铝型材智能锯切中心LXJ-CNC-A2设备特点:
·自动上料工作台可连续自动加持型材进行切割加工。
·移动部分均采用高精度直线导轨副,运行平稳,保证加工精度。
·机械手运动采用进口高精度轮齿条,保证送料精度。
·进口电机直联锯片,切割平稳,加工精度高。
·伺服控制锯切运动,效率更高,切割效果好.
·西门子控制系统,保证设备运行稳定可靠。
·型材连续完成±45°或90°切割,加工效率更高。
·外壳全封闭设计,保证操作人员安全。
·可选配条码打印机,组建 E-Work 数字化工厂系统。
·Worktable auto feeding and clamping continus.
·Highpecision lincar guide-way.
·Mechanicalam, high predsion gear and rackmake feeding accuracy.
·Cut smoothand steady and high precision.
·Cutting motion is servo controlled.cutting effciency andquality are much better.
·Siemens contc system makes machine woeking steadyand reliable.
·±45°or90 cutting is firshed continucus and effciency.
·Totally dosed design, operator prptect
·cption:bar code printer for E-works.
技术参数 | ||
电源 | Voltage | 380V/415V 50Hz |
功率 | power | 3kWx3 |
工作压力 | Air pressure | 0.5-0.8MPa |
转速 | Speed | 2800r/min |
锯切宽度 | Cutting width | 135mm |
锯切高度 | ctting height | 200mm |
锯切角度 | Cutting angle | 90°45° |
锯片规格 | Blade specification | φ500xφ30 |
锯切范围 | Cutting length | Max,5000mm,Min,500mm |
外形尺寸 | Dimersion | 16000x2600x2000mm |
