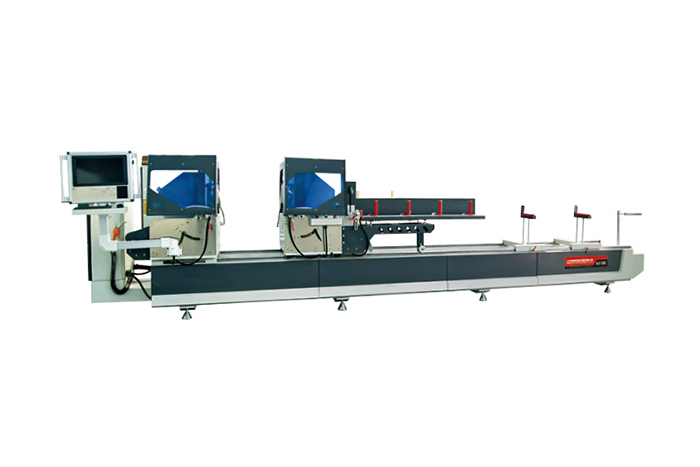

铝型材智能数控双头精密切割锯LJZ6-CNC-500/550×4500设备特点:
·自动化程序较高的一款锯切设备。
· 可实现扫码连线,数据无线传送,并具有打印功能。
·进口切割锯片,切割断面光滑。
·采用进口控制系统;具备标签打印功能。
·一次输入数根型材的尺寸,实现不同长度的连续切割。
· 电器元气件采用原装进口,稳定性好,寿命长。
·A sawing equipment with highautomation procedures.
·It can achieve code scanning connection, wireless data transmission, and printing function.
· The imported blade with high preckion makes the cutting surface smocthly.
·weral profle processing dimensions can be input one time and make continucus cutting
· The main compcnents adopt intemational brand it'sstable.
技术参数 | ||
电源 | Voltage | 380V 50Hz |
功率 | power | 6.8KW |
工作压力 | Air pressure | 0.5-0.8MPa |
锯片规格 | Blade specification | φ500xφ30x4.4 Z=120 |
锯切长度 | Cutting length | Max, 5000mm,Min.480mm |
锯切宽度 | Cutting width | 150mm |
锯切高度 | Cutting height | 230mm |
锯切角度 | Cutting angle | 45°90° |
重复定尺长度误差 | Repeat locating length error | ±0.2mm |
切割角度误差 | Surface plainness | ±4 |
外形尺寸 | Overall dimensions | 6500x1600x1800mm |
重量 | weight about | 约2000kg |
